Schaltbau electrics for rolling stocks

Whether control devices, high-voltage equipment or driver's desks, Schaltbau offers you a wide range of innovative electrics for rolling stocks to ensure safe railroad operations

Modern and efficient transportation systems require safe railway vehicles with low downtime and maintenance. Here the quality and reliability of the components used is the decisive factor. Schaltbau electrics for rolling stock fully meet these requirements of OEMs and railway operators alike. They are used in rail vehicles all over the world, where they ensure safe and smooth operation in the harsh railway environment.

Find here the desired equipment

SD, SE, SDE, SCO – Multipole switchgear up 600kV to 3kV

HV changeover units, multipole rotary scissor switches, 2, 3 and 4 position assemblies, suitable for all UIC voltages, off-load adjustment...

BFH – Timetable holders for driver’s desks

Device for fixing timetables and other print media on driver’s desks of EMUs and DMUs

S860 – Keylock switches

1 or 2 pole series with snap-action switches, rated insulation voltage 400 V, conv. thermal current 10 A

S126 – Keylock switches

1 or 2 pole series with cam switch elements, rated insulation voltage 400 V, conv. thermal current 25 / 60...

S293 series

Dead-man foot switches

Toggle switches P – 5 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 snap-action switches type S800 or S826

Toggle switches P – 3 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 snap-action switches type S800 or S826

Toggle switches L – 5 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 cam switch elements S005, S007, S008

Toggle switches L – 3 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 cam switch elements S005, S007, S008

Toggle switches F – 5 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 2 snap-action switches type S800, S826 or S870

Toggle switches F – 3 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 2 snap-action switches type S800, S826 or S870

Toggle switches K – 5 position contact assembly

State-of-the-art toggle switches for driver‘s desks of rail vehicles with up to 8 snap-action switches type S880

Toggle switches K – 3 position contact assembly

State-of-the-art toggle switches for driver‘s desks of rail vehicles with up to 8 snap-action switches type S880

IntelliDesk – Driver’s desks for rail vehicles

Innovative communications and wiring concept for system integration inside a driver’s desk

MD500 – Manual disconnector DC, AC

1 and 2 pole modular, manual disconnectors up to 500 amps

ZH1114 – Voltage selector for multi-system railway vehicles

550 compliant voltages, meets insulation requirements for 3 kV DC, measurement range up to 5 kV AC and 6 kV...

CO4 – High-voltage changeover unit

Suitable for all UIC voltages for off-load adjustment of electrical configurations in rail vehicles.

ZH1500 – Disconnecting and earthing device for single and multi-system rail vehicles

Suitable for all UIC voltages, insulation for operating voltages up to 5 kV DC max., to be mounted in switchgear...

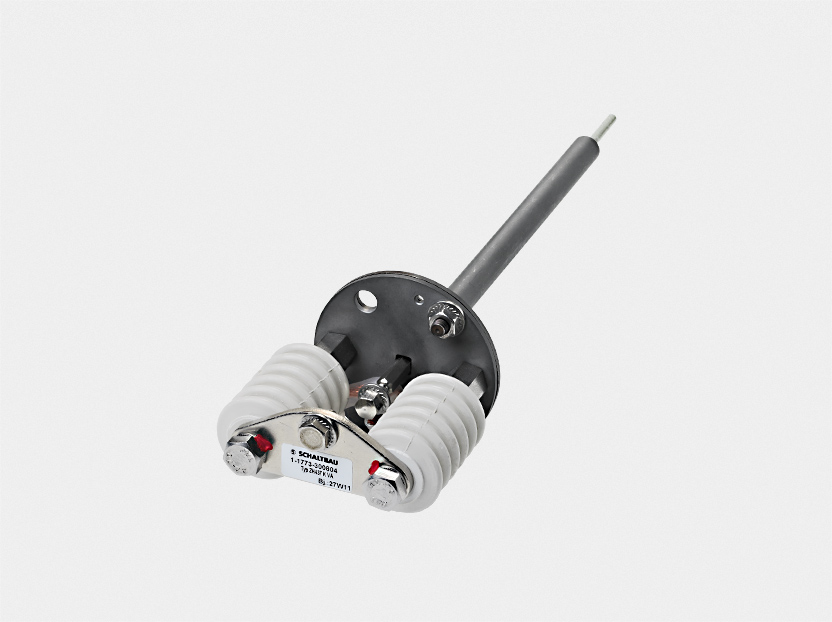

Fusible overtemperature protection and tripping devices

Ensure fail-safe thermal cutout protection against overheating of electric air heaters

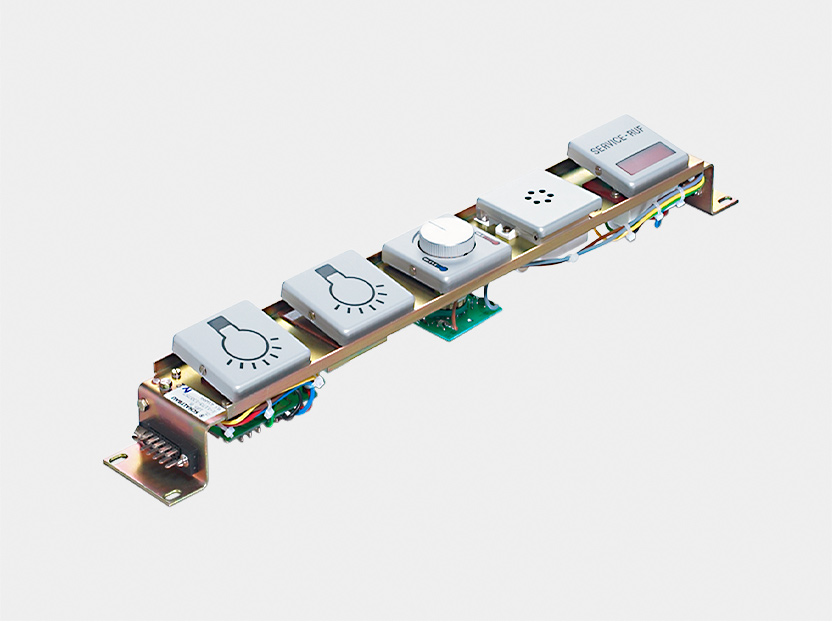

ZL192 – Control panel assemblies for railway vehicles

Various combinations of displays, contols and sensors, installation in housing recess, 3 elements max.

ZL203 … ZL228C – Control panel assemblies for railway vehicles

Miniature design for many combinations of display and control elements, actuators and sensors, installation in housing recess, 5 elements max.

ZL181 … ZL214 – WC, fire alarm or first aid indicators for rail vehicles

Standard indicators with anodised aluminium frame, highly visible LED illumination and available for different supply voltages

ZL162 … ZL189 – Control panel assemblies for railway vehicles

Various combinations of displays, contols and sensors, installation in housing recess, 5 elements max.

TSAL – Emergency handle for rail vehicles

Robust metal housing, device with local manual reset

PAD40 – Passenger alarm devices

Emergency brake handle for rail vehicles

PAD30 – Passenger alarm devices for wall mounting

Emergency brake handle for rail vehicles

PAD10 – Passenger alarm devices for lintel mounting

Aluminium die-cast housing, resistant to acids and chemicals, sealable, optional automatic reset, 2 switching elements max.

JA226B – Multi-tone buzzer for up to 10 different warning tones

Mode of operation software based according to customer specification, control inputs electrically isolated, multi-level adjustment of output volume, download of...

JA224B – Multi-tone buzzer for up to 9 different warning tones

Tone output prioritized or mixed, control inputs electrically isolated, multi-level adjustment of output volume, download of the tones into the...

JA222 – Electronic buzzers

Signalling for intermittent automatic train-running control and dead-man equipment, multi-level adjustment of frequencies and volume, 3 frequency ranges for Germany,...
