Schaltbau toggle switches for rail vehicles

Rail vehicles in good hands – with toggle switches from Schaltbau

Schaltbau toggle switches assemblies are suitable for the rough operating environment. Sturdy construction and a long design life make them especially useful for railway applications in mainline and commuter rail service.

Features

Handle styles

The following lever types are available: standard handle, special handle (SH), ball handle (SK), ball handle yellow (SKy), T-handle (SW), cylinder handle, short (SHL), cylinder handle long, short (SHM)

Switching function
Many switching combinations are possible for all 3- and 5- position contact assemblies.
The centre position marks the middle position. Starting from the centre position there are:

  • for the 3- position contact assemblies one maintained or momentary switching function up and down
  • for the 5-position contact assemblies two maintained or momentary switching functions up and down
Switching elements

Schaltbau snap-action switches or Schaltbau cam switching elements are used as switching elements:

  • K series: 8 snap-action switches S880 max.
  • F series: 2 snap-action switches S800, S826 or S870 max.
  • P series: 4 snap-action switches S800, or S826 max.
  • L series: 4 cam switching elements S005, S007 or S008 max.

Baureihenübersicht

Kippschalter K – 3-StellungsgerätToggle switches K – 3 position contact assembly

State-of-the-art toggle switches for driver‘s desks of rail vehicles with up to 8 snap-action switches type S880

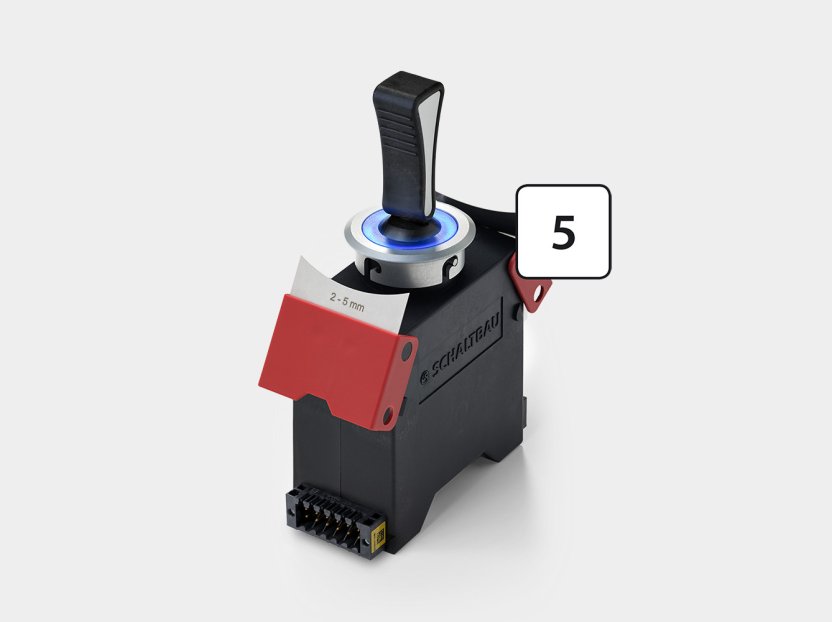

Kippschalter K – 5-StellungsgerätToggle switches K – 5 position contact assembly

State-of-the-art toggle switches for driver‘s desks of rail vehicles with up to 8 snap-action switches type S880



Kippschalter F – 3-StellungsgerätToggle switches F – 3 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 2 snap-action switches type S800, S826 or S870



Kippschalter F – 5-StellungsgerätToggle switches F – 5 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 2 snap-action switches type S800, S826 or S870



Kippschalter L – 3-StellungsgerätToggle switches L – 3 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 cam switch elements S005, S007, S008



Kippschalter L – 5-StellungsgerätToggle switches L – 5 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 cam switch elements S005, S007, S008



Kippschalter P – 3-StellungsgerätToggle switches P – 3 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 snap-action switches type S800 or S826

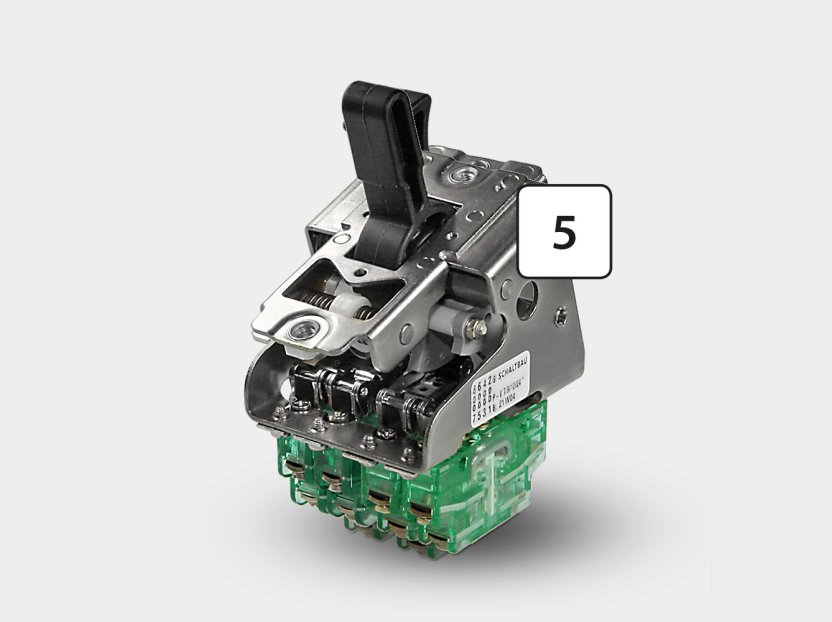

Kippschalter P – 5-StellungsgerätToggle switches P – 5 position contact assembly

Toggle switches for driver‘s desks of rail vehicles with up to 4 snap-action switches type S800 or S826
