New era. New power. DC power.
Eddicy High-Power Contactors - Where power meets progress
Experience Eddicy high-power contactors for your energy and e-mobility applications
Power isn’t just about energy—it’s about reliability, endurance, and the ability to drive progress where it matters most. That’s why Eddicy is bringing Schaltbau’s trusted high-power contactors beyond the rail industry and into the future of energy and e-mobility.
For decades, Schaltbau contactors have powered the world’s most demanding rail applications. Now, that same proven technology is transforming high-power needs in mining, construction, test benches, and beyond—ensuring safety, efficiency, and durability in every connection.
From energy storage and charging infrastructure to industrial e-mobility, our contactors are designed to handle extreme voltages and currents with precision and reliability. As industries electrify, Eddicy empowers them with the technology that drives real progress.
- Rail-Tested, Industry-Ready – Decades of expertise, now applied to new frontiers
- Uncompromising Performance – High-voltage, high-current capability for the most demanding environments
- Essential for the Energy Transition – Supporting the electrification of key industries that shape our future
What you can expect from our high-power contactors
- Up to 25% energy cost savings: Low contact resistance and lower contact heating reduce energy losses and require less cooling
- Full bidrectionality: Safe disconnection of high-power during charging and discharging thanks to specially designed extinguishing chamber
- Safe breaking of high power: High breaking capacity under full load up to 10 megawatts thanks to innovative main contact system
- High availability: Robust design for a long system service life
- High safety level: Mirror contact for safe feedback of the switching status according to IEC 60947‑4‑1, annex F
Technical details

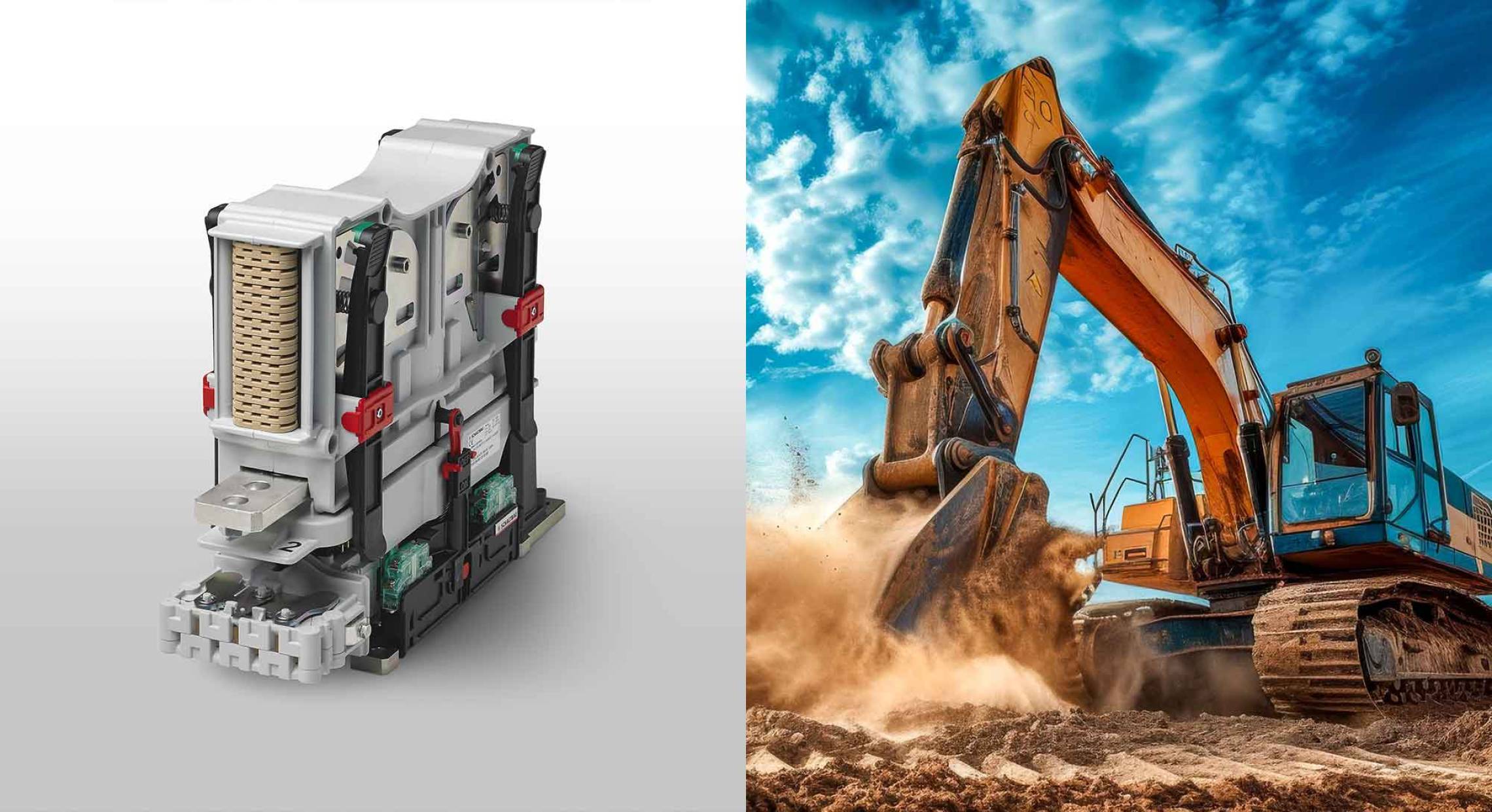

CP series
- Current range: 600A to 2000A, with the three new versions rated at 800A, 1000A, and 1500A
- Voltage range: Nominal voltages of 1.5kV to 3kV, suitable for both AC and DC loads
- Mechanical life: Over 1 million switching cycles for NO and NC contacts, making them highly durable in harsh operating conditions
- Configuration flexibility: The CP contactors feature 3 arc chamber types (A, B, D) and come with a monostable drive system, ensuring broad applicability and easy customization for e-mobility and energy applications
CF series
- Current ratings: Available in 200A, 300A, and now 400A models, providing a scalable solution for different power needs
- Switching chambers: Each variant is built with up to six poles (for 200A/300A models) or four poles (for the 400A model), with fully bi-directional switching for both AC and DC loads
- Mechanical life: With over 1 million cycles, the CF series delivers longevity, reducing the need for frequent maintenance
- Operational flexibility: The modular design supports up to four auxiliary contacts (S870 or S826), enhancing its applicability across a variety of operational conditions
- Critical current resilience: The CF series is engineered to handle high short-circuit withstand currents of 4kA without critical current range issues
