Manual rotary disconnect switch for rated voltages up to 1,500 volts and continuous currents up to 500 amperes
Manual disconnector MDR500
1 and 2 pole manual rotary disconnector for currents up to 500 amps

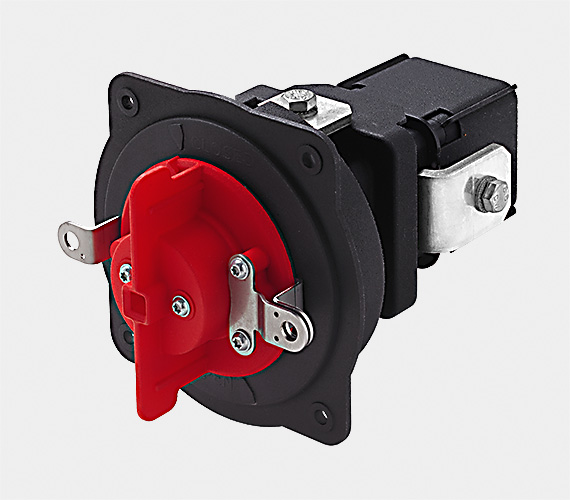

1 pole manual disconnector
2 pole manual disconnector
Manual rotary disconnect switch for rated voltages up to 1,500 volts and continuous currents up to 500 amperes
Schaltbau high-voltage rotary disconnectors in the MDR500 series are designed for rated voltages of up to 1,500 V and continuous currents of up to 500 A per switching chamber. The modular product concept allows for single- and multi-pole versions, thereby offering a high degree of flexibility in system integration. The basis is a contact system patented by Schaltbau, which has already proven its worth in the manual disconnectors of the MD500 series. The MDR500 features two integrated auxiliary switches for reliable feedback of the switch position to a higher-level control system. An optional locking mechanism, for example using a padlock, protects against unauthorised operation.
Features
Ergonomic hand knob
Manual actuator with rotary control for secure locking of the operating position; two positions: CLOSED=operating position, OPEN=disconnect position
Patented contact system
Extremely low contact resistance (< 100 µΩ) and very high short-circuit current withstand capacity (30,000 A @ 20 ms) for years of continuous operation. 1- and 2-pole versions available.
Modularity
The positions of the main contacts (right, top, left) can be freely configured relative to one another in 90° increments.
Mechanical locking
The switches can be secured in the operating and disconnected positions with an optional padlock to prevent unintended disconnection or re-energization.
2 auxiliary switches
S870 snap-action switch with silver or gold contacts as well as positive opening for diagnosis and switching status monitoring.
Specifications
Electrical data of main circuit
| Type of voltage | DC, AC AC (f ≤ 60 Hz) |
| Nominal voltage Un | 1,500 V |
| Rated operating voltage Ue | 1,800 V |
| Rated insulation voltage UNm | 1,800 V |
| Rated impulse withstand voltage UNi | 10 kV |
| Pollution degree | PD3 |
| Overvoltage category | OV3 |
| Conv. thermal current Ith | 500 A |
| Component category | B |
| Rated short-time withstand voltage Icw | 30 kA @ T < 20 ms |
Drive
| Actuator | Manual operation by turning the handle through 180° Mechanical locking in the on and off positions using an optional padlock to prevent accidental disconnection or reconnection |
Auxiliary contacts
| Number, configuration | 2x max. snap-action switches S870 SPDT, single break contacts, 3 terminals |
General data
| Vibration, Shock | Category 1, class B |
| Mechanical endurance | > 5,000 operating cycles |
| Mounting orientation | horizontal, vertical |
| Temperature range | –40° C … +85° C |
| Weight | 1 pole: approx. 1.4 kg 2 pole: approx. 2.3 kg |
