Eddicy NF 07 - Standard circular audio miniature connectors
Eddicy connectors of the NF07 series are 7-pole audio connectors with gold-plated spring-loaded contacts specially designed for communications technology

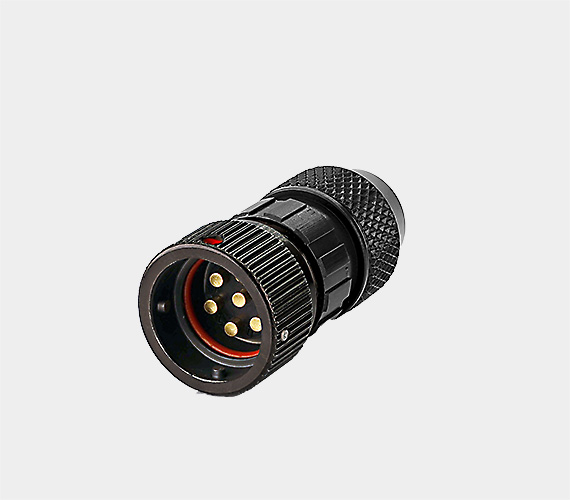

NF07 Series
NF07 Series
NF07 Series
NF07 Series
NF07 Series
Our well-proven 7-pole circular audio miniature connectors NF07 are especially designed for communication engineering. They provide high reliability under extreme ambient conditions. The present catalogue describes the watertight connectors with a bayonet groove, covering a wide temperature range. The modular design provides many combinations allowing to suit your particular requirements.
Features
- NF07: All shells consist of stainless steel and non magnetic materials.
- High degree of protection: Plugs and receptacles sealed to IP68 even when not mated
- Spring-loaded contacts: Hard gold plated with self-cleaning faces. Resistant to shock and vibration.
- Polarization, Bayonet: The NF series feature a variety of connector orientations. 3 colour-coded bayonet latch positions are available.
- EMP shielding: Great attenuation characteristics with regard to electromagnetic influences, RF influences and pulse repetition frequencies
Technische Daten
Baureihe NF07 Standard
| Polzahl | 7 |
| Bemessungsspannung | 50 V |
| Bemessungsstrom Ie | 6 µA min. / 2,5 A max. (für 2 beliebige Kontakte, Deratingkurve beachten) |
| Kodierlage | 3 |
| Durchgangswiderstand | ca. 5 mΩ |
| Isolationswiderstand | ≥ 5.000 MΩ |
| Schirmdämpfung | > 60 dB bei 1 MHz (VG 95214-3) |
| Prüfspannung | 500 Veff, 50 Hz |
| Dichtigkeit gekuppelt | IP68 (0,4 bar, 2h bei 25°C, nach VG 95319-2, Test-Nr. 5.9.2.) |
| Dichtigkeit ungekuppelt | IP68 (0,4 bar, 2h bei 25°C, nach VG 95319-2, Test-Nr. 5.9.2.) |
| Mechanische Lebensdauer | > 5.000 Steckzyklen |
| Temperaturbereich | -55°C … +100°C (10 sec bis +150°C) |
| Gehäusematerial / -oberfläche / -farbe | Aluminium-Legierung, Stahl nicht rostend (antimagnetisch) / Ni3+2Cd6+2cF, Cr3+2 / RAL6015, schwarz |
| Kontakte, Ausführung | Druckkontakte, Stecker: federnd / Dosen: feststehend |
| Kontakte, Material | Kupferknetlegierung, vergoldet |
| Kontakte, Anschluss | Löten: 0,5 mm²/AWG 20, PCB: Pins Ø 0,53 mm |
| Verschlussart | Bajonett |
Specifications
NF07 standard series
| Number of contacts | 7 |
| Rated voltage | 50 V |
| Rated current Ie | 6 µA min. / 2.5 A max. (for any two contacts, please observe derating curve) |
| Orientations | 3 |
| Contact resistance | approx. 5 mΩ |
| Insulation resistance | ≥ 5,000 MΩ |
| EMP shielding | > 60 dB at 1 MHz (VG95214-3) |
| Test voltage | 500 Veff, 50 Hz |
| Sealing mated | IP68 (0.4 bar, 2 h at 25°C, according to VG95319-2, Test-No. 5.9.2.) |
| Sealing unmated | IP68 (0.4 bar, 2 h at 25°C, according to VG95319-2, Test-No. 5.9.2.) |
| Mechanical endurance | > 5,000 mating cycles |
| Temperature range | -55°C … +100°C (10 sec up to +150°C) |
| Hosing material / finish / colour | aluminium die-cast, stainless (antimagnetic) steel / Ni3+2Cd6+2cF, Cr3+2 / RAL6015, black |
| Contact design | Plugs: spring-loaded contacts / receptacle: rigid contacts |
| Contact material | Copper wrought alloy, gold plated |
| Contact terminal type | Solder: AWG 20, PCB: solder pins Ø 0,53 mm |
| Coupling | Bayonet |
