3-pole socket contacts with PE and 4 signal contacts, plus ergonomic one-hand operation via the sliding mechanism in the handle
HV – Three-phase high-performance connectors for AC train busbars
High-performance connector for powering EMUs and DMUs via the three-phase AC train busbar

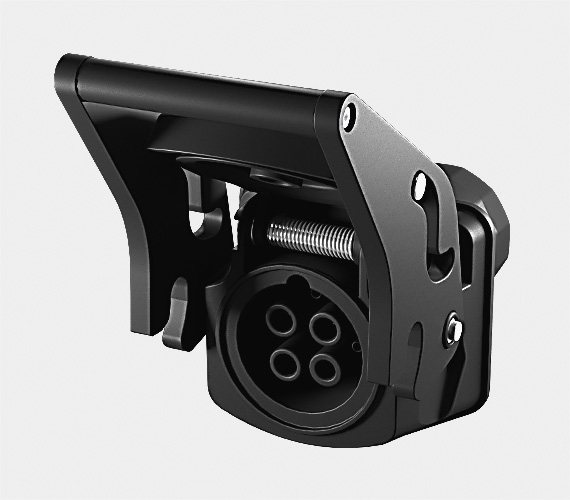

HV Socket
HV Plug
Plug with 3-pole pin contacts, PE and 4 signal contacts
With this extremely robust plug-in connector, Schaltbau offers
a high-performance solution for the safe and reliable AC
power transmission in modern rail vehicles. Optionally, the
connectors are also suitable for supplying power to parked
trains in depots and stabling facilities, in order to power AC
auxiliary systems – including battery charging – when the
regular power supply via the catenary is unavailable or not
in use. The connectors combine tried-and-tested railway
connector technology with high-performance industrial connector technology and are ideally suited to the demanding
operating conditions of rail transport. The robust and proven
design ensures high operational safety, durability and reliable
performance – even under the harsh environmental conditions
of railway operations.
Features
Wide power range
Voltages up to 400 volts and continuous thermal currents more than 250 amps. Main contacts in the plug and socket housings are securely protected by a finger-protection guard.
Easy operation
One-handed operation – thanks to the sliding mechanism on the handle of the socket housing. This saves effort and ensures safe locking and unlocking of the plug in the socket.
Feedback plug inserted
An optional switching element in socket housing detects whether the plug is correctly inserted and locked in place.
Comprehensive range Modularity
Plugs, coupling sockets and dummy sockets for flexible applications; also available configured with cable or individual conductors in a robust corrugated conduit.
Flammability
Meets the requirements of UL94-V0 and the following fireprotection standards EN 45545.
Specifications
HV series
| Number of contacts | 3-polig + PE + 4 |
| Rated voltage Ue | Power contacts 1+2+3: 400 V AC Signal contacts 4+5: 25 V AC / 60 V DC Signal contacts 6+7: 25 V AC / 60 V DC |
| Pollution degree Overvoltage category |
PD3A OV2 |
| Rated current Ie | Power contacts 1+2: 41+2+3: 250 A min. @ 95 mm2 Signal contacts 4+5 / 6+7: 16 A max. @ 2.5 mm2 Note: All values refer to the max. rated current of the individual contacts. |
| Contact design | Power contacts 1+2+3: Contact diameter ø10 mm Cross section 35 / 50 / 70 / 95 mm2 Signal contacts 4+5 / 6+7: Contact diameter ø1.58 mm Cross section 0.5 / 0.75…1 / 1.5 / 2.5 mm2 |
| Housing material | Socket: Aluminium die-cast, black Plug: Polyamid PA 6.6, black Contact inserts: Polyamid PA 6.6, black Seals: Silicone |
| Feedback contact plug inserted | 1x in socket shell, S870 series, NC, 10 A |
| Coupling | Socket housing with handle and one-hand lock |
| IP rating (IEC 60529) | IP69K: When mated, socket with closed lid, plug in dummy socket |
| Mechanical endurance | > 10,000 mating cycles |
| Temperature range | –40° C … +85° C |
